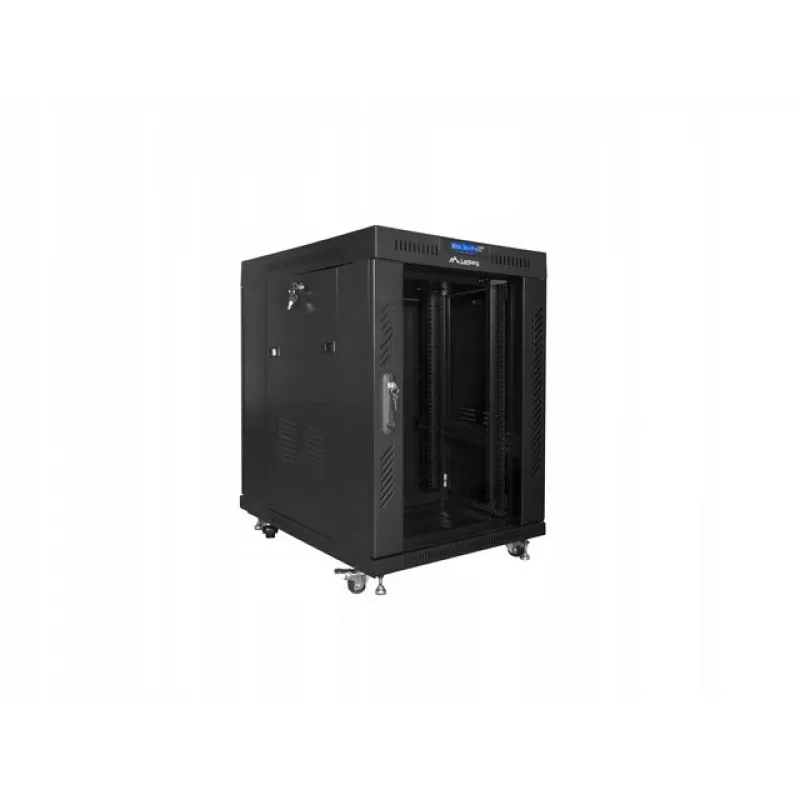

Lanberg FF01-6815-12BL álló szekrény

Free standing Lanberg cabinet FF01-6815-12B is a 19" floor cabinet designed to house network and server equipment with a maximum load capacity of 800 kg. The cabinet is suitable for network rooms, server rooms, small and medium businesses, and data centers, and can also be used for low-voltage systems such as CATV, alarm and fire protection systems, access control, CCTV and IP surveillance. The frame is made of cold-rolled steel and the depth of the vertical mounting rails is fully adjustable. The cabinet ships in three flat packs for easier transport.

Advantages

The cabinet offers a tempered glass front door with a lock, reversible door mounting (right or left), removable side panels with locks, and a solid rear steel door with a lock. Top and bottom panels include blank entry panels for cable routing. A fan tray with four 230 V fans is included. The package also contains rail mounting accessories, M6 cage nuts and additional blank entry panels.

Key specifications

• Form factor: 19" floor cabinet
• Model: Lanberg FF01-6815-12B
• Maximum load capacity: 800 kg
• Doors: front tempered glass door with lock, rear solid steel door with lock
• Side panels: removable, with locks
• Adjustable vertical rails: depth adjustable
• Cable entries: top and bottom with blank entry panels
• Cooling: fan tray with 4 × 230 V fans
• Accessories included: rail mount accessories, M6 cage nuts, blank entry panels
• Packaging: three flat packs for self-assembly

How to use

Assemble the cabinet from the three supplied flat packs following the manufacturer instructions. Install and fix the vertical mounting rails at the required depth, mount equipment using M6 cage nuts and rail accessories, and route cables through the top or bottom blank entry panels. Fit the removable side panels and secure doors; choose the preferred side for the front door during assembly. Connect the fan tray to a 230 V supply and verify airflow before commissioning.

Recommendations

For safe and reliable operation, install the cabinet on a level surface, distribute equipment weight evenly, and ensure sufficient ventilation and cable management. Use compatible 19" mounting hardware and follow local electrical and fire safety regulations when connecting fans and other powered accessories.
