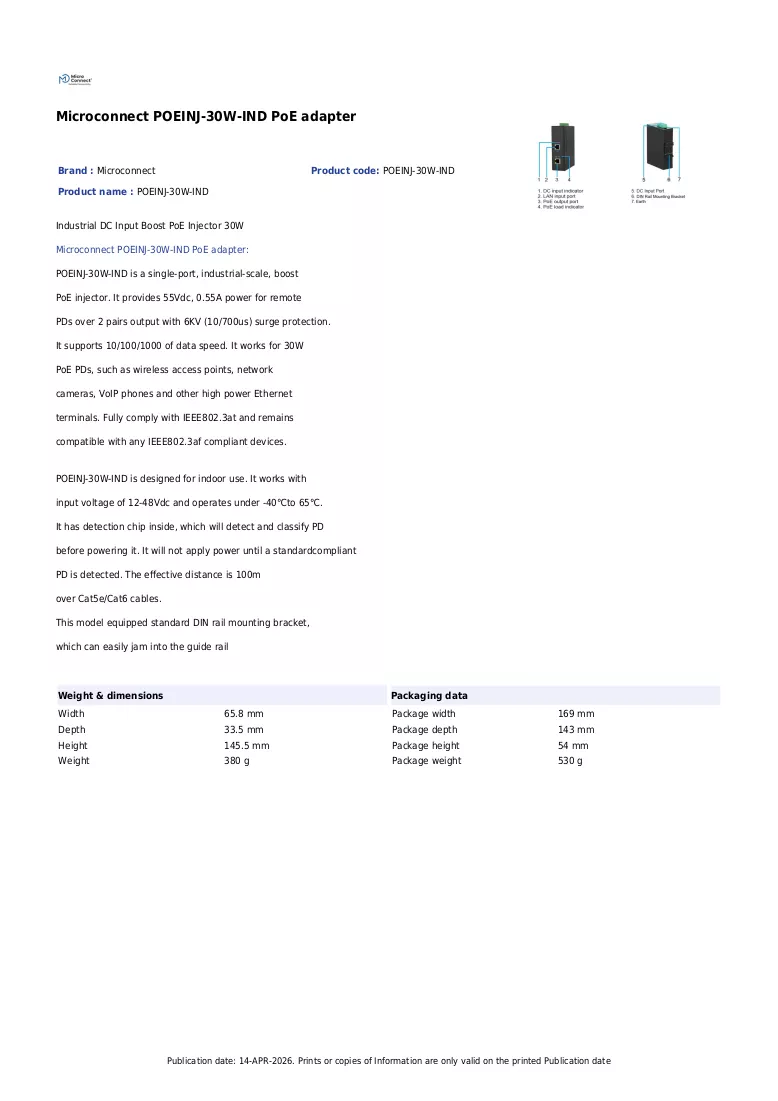

Microconnect POEINJ-30W-IND PoE-adapter

POEINJ-30W-IND is a single-port, industrial-scale, boost

PoE injector. It provides 55Vdc, 0.55A power for remote

PDs over 2 pairs output with 6KV (10/700us) surge protection.

It supports 10/100/1000 of data speed. It works for 30W

PoE PDs, such as wireless access points, network

cameras, VoIP phones and other high power Ethernet

terminals. Fully comply with IEEE802.3at and remains

compatible with any IEEE802.3af compliant devices.

POEINJ-30W-IND is designed for indoor use. It works with

input voltage of 12-48Vdc and operates under -40℃to 65℃.

It has detection chip inside, which will detect and classify PD

before powering it. It will not apply power until a standardcompliant

PD is detected. The effective distance is 100m

over Cat5e/Cat6 cables.

This model equipped standard DIN rail mounting bracket,

which can easily jam into the guide rail

Microconnect POEINJ-30W-IND. Width: 65.8 mm, Depth: 33.5 mm, Height: 145.5 mm. Package width: 169 mm, Package depth: 143 mm, Package height: 54 mm
