Triton ROPAM MULTILTE-RF értesítő modul

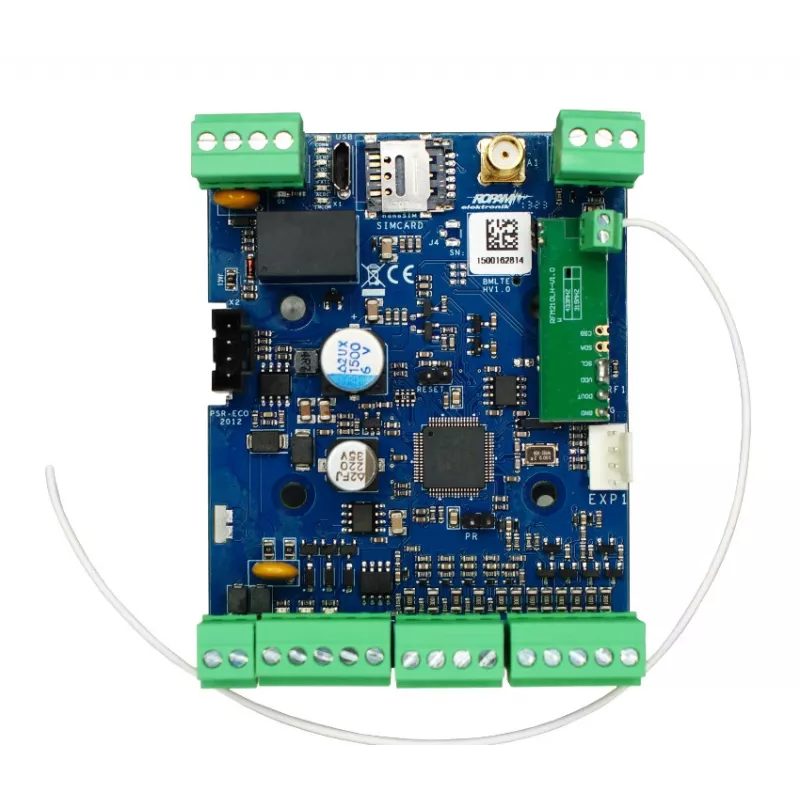

The Triton ROPAM MULTILTE-RF Notification Module (model 38243) is an advanced expansion/communication module designed for Ropam security control panels. It integrates LTE (4G) cellular and 868 MHz RF technologies to provide reliable event notifications and remote control capabilities. This module enables SMS, PUSH, email, and voice call alerts, and supports remote configuration via the RopamBridge App or GuardX software. Ideal for enhancing alarm systems with multi-channel communication and remote management.

Advantages

Dual communication technology (LTE + RF) ensures robust connectivity. Supports up to 8 notification recipients. Easy plug-in installation on compatible Ropam panels. Remote configuration and monitoring via app or software. Event reporting via SIA-IP and Contact ID protocols.

Suitable for

• Ropam NeoGSM-IP-PS, OptimaGSM, and MultiGSM control panels
• Security systems requiring cellular backup and remote notifications
• Installations needing RF-based wireless expansion

Key specifications

• Communication Technology: LTE (4G), RF (868 MHz)
• LTE Module: Quectel EG91-EX
• SIM Card Type: Micro-SIM
• Antenna Connectors: 2 x SMA (1x LTE, 1x RF)
• Notification Channels: SMS, PUSH, Email, Voice Call (CLIP/DTMF)
• Remote Control: SMS, DTMF, RopamBridge App
• Data Transmission: GPRS/LTE for monitoring (RopamBridge, GuardX)
• Event Reporting Protocols: SIA-IP, Contact ID
• Power Supply: 12V DC (from host panel)
• Current Consumption: ~30 mA (standby), ~300 mA (max)
• Operating Temperature: -10°C to +55°C
• Number of Notification Recipients: Up to 8 telephone numbers
• Module Type: Expansion/Communication Module
• Mounting: Plug-in module for compatible Ropam panels

Recommendations

Ensure compatibility with your Ropam control panel before installation. Use a suitable Micro-SIM card with data plan for LTE functionality. For optimal RF performance, connect the provided antenna.
