Bináris bemeneti modul inbox Blebox

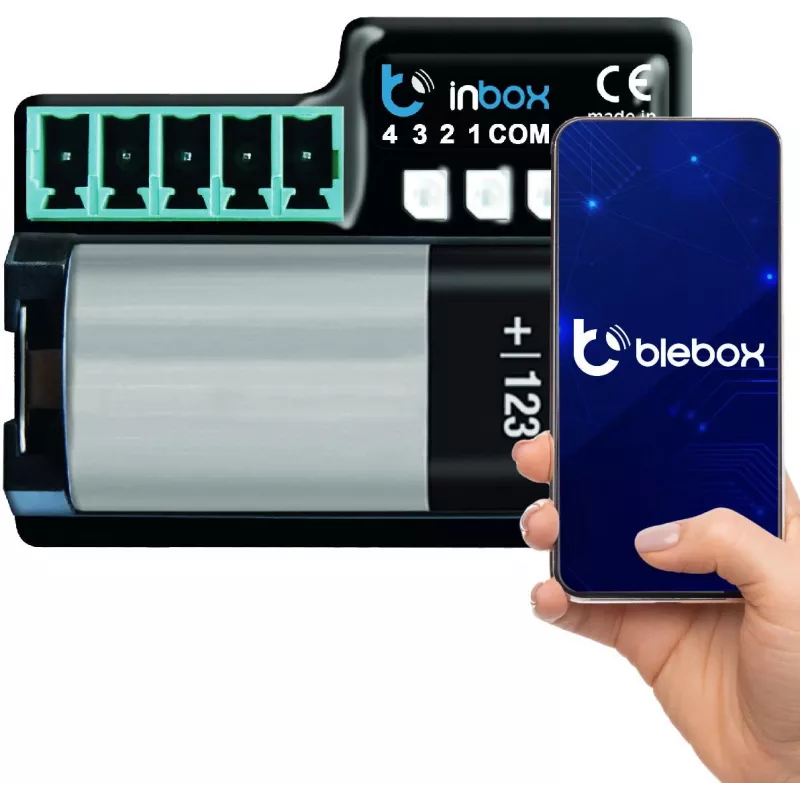

The Blebox Binary Input Module inbox is a compact Wi-Fi device designed to monitor external switch or sensor states and integrate them into your smart home system. It features two potential-free inputs that can be used with push buttons, switches, or dry contact sensors, enabling automation scenarios such as door/window monitoring, motion detection, or status feedback. The module communicates via Wi-Fi 2.4 GHz and is compatible with the BleBox app, web browser, REST API, and MQTT, allowing seamless integration with Google Home, Amazon Alexa, and Home Assistant. Its in-wall flush-mount design (Ø60mm) makes it ideal for discreet installation in standard junction boxes.

Advantages

Easy to install and configure, the Binary Input Module inbox offers reliable monitoring of two independent inputs. It supports overload and overtemperature protection, ensuring safe operation. With energy monitoring capabilities, schedules, timers, and scene control, it provides flexible automation possibilities. The module consumes less than 1W in standby, making it energy-efficient.

Suitable for

• Smart home automation systems
• Monitoring door/window contacts
• Integrating push buttons or switches into home automation
• Status feedback for sensors or alarms

Key specifications

• Device Type: Wi-Fi Binary Input Module
• Power Supply: 230V AC
• Number of Inputs: 2 (potential-free)
• Wireless Connectivity: Wi-Fi 2.4 GHz (802.11 b/g/n)
• Control: BleBox app, Web browser, REST API, MQTT
• Mounting: In-wall flush-mounted box (Ø60mm)
• Operating Temperature: -20°C to 50°C
• Protection: Overload, Overtemperature
• Special Features: Energy Monitoring, Schedules, Timers, Scene Control
• Compatibility: Google Home, Amazon Alexa, Home Assistant
• Power Consumption: < 1W
• Housing Material: Flame-retardant plastic

Recommendations

For optimal performance, ensure the module is installed in a dry indoor location within the specified temperature range. Use with compatible smart home hubs for advanced automation.
