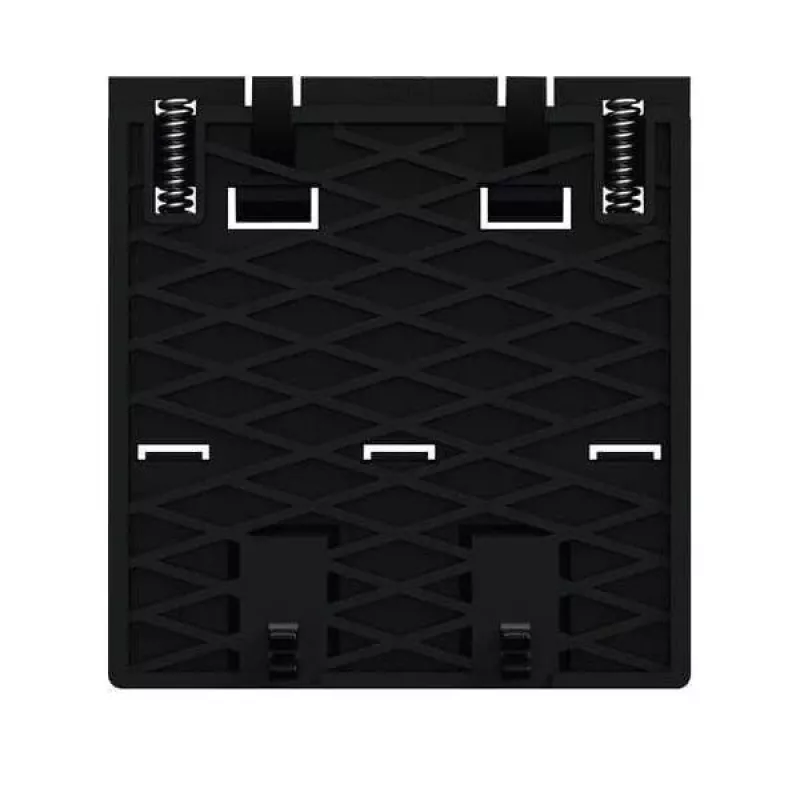

Busch-Jaeger sínadapter SAP-A1.11 (2CKA006200A0157)

The SAP-A1.11 from Busch-Jaeger is a DIN rail adapter that allows electrical devices without integrated mounting clips to be installed on standard 35 mm DIN rails. Its clip-on design makes it a practical choice for control cabinet assembly.

Highlights

• Mounts devices without DIN rail clips onto a 35 mm DIN rail
• Clip-on installation, no tools required
• Compact 1-module width (18 mm)
• Made from light grey thermoplastic (PC/ABS)

In daily use

The adapter is suitable for use in distribution boards and control cabinets where DIN rail mounting is required. It provides a stable base for small electrical components and is rated for operating temperatures from -5 to +45 °C.

Full specifications

• Product type: DIN Rail Adapter
• Manufacturer: Busch-Jaeger (ABB Group)
• Model series: SAP-A1.11
• MPN: 2CKA006200A0157
• EAN: 4011395261620
• Mounting standard: DIN Rail (EN 60715)
• DIN rail size compatibility: 35 mm
• Material: Thermoplastic (PC/ABS)
• Colour: Light grey
• Number of module units: 1
• Installation method: Clip-on
• Operating temperature range: -5 to +45 °C
• Storage temperature range: -25 to +55 °C
• Protection degree: IP20
• RoHS compliance: Yes
• REACH compliance: Yes
• Certifications: CE
• Dimensions (W x H x D): 18 x 59 x 70 mm
• Weight: 10 g

Final note

The SAP-A1.11 is a straightforward adapter for DIN rail mounting, offering reliable clip-on installation for compatible devices.
