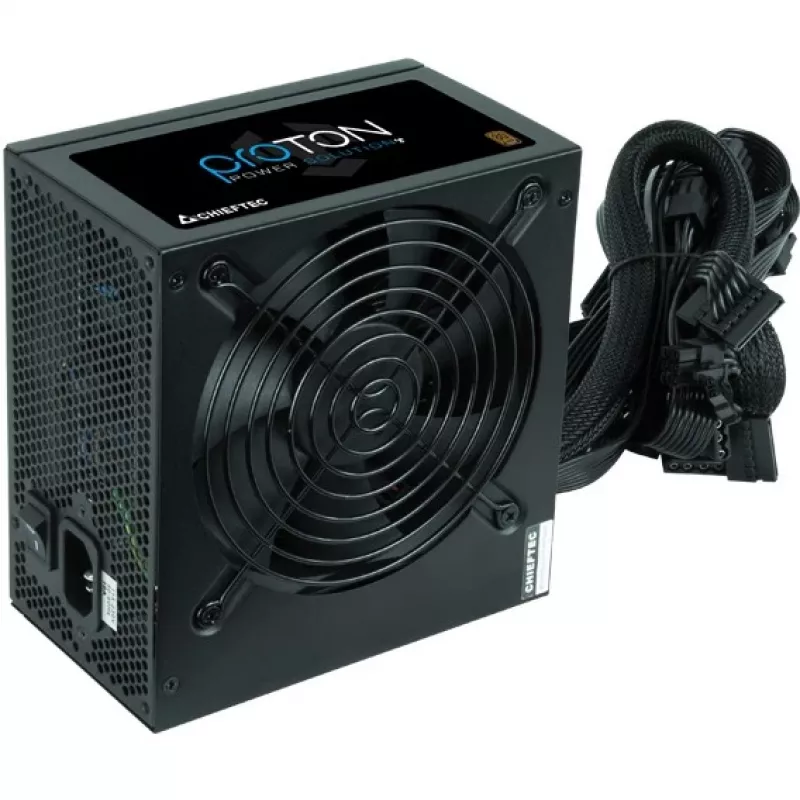

Chieftec BDF-500S tápegység 500 W

Power Supply Unit Chieftec BDF-500S 500 W

The Chieftec BDF-500S power supply unit is an excellent choice for your computer. It delivers 500 W and carries an 80 PLUS Bronze certification for high efficiency of up to 85%. It has a 24-pin ATX motherboard connector and 2 PCI Express power connectors (6+2 pin), making it well suited to powerful gaming PCs. A 12 cm fan provides effective cooling and active PFC improves energy efficiency, while multiple protection features guard against overload, short circuit, over-voltage and under-voltage. Who is it for: designed for personal computers that require a stable, efficient power supply, suitable for both gaming and work PCs. Why choose it: a reliable, efficient PSU with top-quality protection features to help ensure your computer's stability and longevity. Specifications: 500 W total power; 80 PLUS Bronze (85% efficiency); active PFC, power factor 0.9; PS/2 form factor; 24-pin ATX (ATX version 2.3), CPU 4+4 pin, 2x PCI Express 6+2 pin, 6x SATA and 2x peripheral (Molex 4-pin) connectors; max output +12V 41.68 A, +5V 18 A, +3.3V 18 A, +5Vsb 2.5 A, -12V 0.3 A; combined power +3.3V/+5V 90 W; one 12 cm top-mounted fan (active cooling); on/off switch; AC input 115-230 V, 50-60 Hz; dimensions 150 x 140 x 87 mm; colour black; supplied in a box with manual and warranty card. How to use: install the BDF-500S into a compatible ATX case following standard PSU mounting procedures, connect the 24-pin ATX cable to the motherboard and attach the other required cables (CPU, SATA, peripheral), ensure the input voltage matches your mains supply (115-230 V), then power on and confirm the fan operates and voltages are stable under load.

Specifications

• Cooling type: Active
• Depth: 140 mm
• Height: 87 mm
• Product colour: Black
• Width: 150 mm
• Harmonized System (HS) code: 84733020
• Package type: Box
• AC input voltage: 115 - 230
• AC input frequency: 50 - 60
• Manual: Yes
• On/off switch: Yes
• Number of fans: 1 fan(s)
• Purpose: PC
• Efficiency: 85 %
• Power protection features: Overload, Over voltage, Short circuit, Under voltage
• Fan diameter: 120 mm
• Total power: 500 W
• Power factor: 0.9
• Power Factor Correction (PFC) type: Active
• Combined power (+3.3V): 90 W

MPN: BDF-500S · EAN: 4710713231269.
