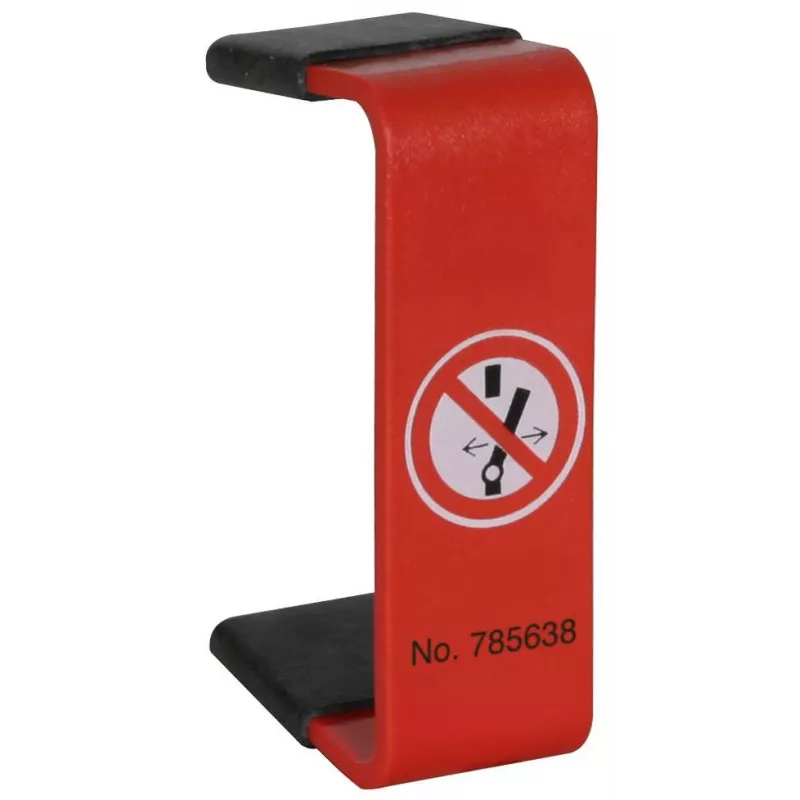

DEHN SE REG 1TE reteszelő elem 785638

Locking element for modular devices, securing circuit breakers and similar DIN rail mounted equipment against unauthorized switching. The DEHN SE REG 1TE locks a device in either the ON or OFF position, preventing tampering or accidental operation.

Advantages

Tool-free snap-on installation on standard 35 mm DIN rails. Compatible with ABB S200, F200, DDA200 series and similar modular devices with 1 TE width. Locking position selectable: ON or OFF. Made of grey thermoplastic, suitable for indoor use.

Suitable for

• Circuit breakers and residual current devices
• Modular devices with 1 TE width
• DIN rail installations requiring switch position locking

Key specifications

• Module width: 1 TE (18 mm)
• Mounting: DIN rail
• Material: Thermoplastic
• Colour: Grey
• Operating temperature: -25 to +55 °C
• Storage temperature: -40 to +70 °C

Recommendations

Use to prevent unauthorized switching of critical circuits in commercial and industrial installations.
