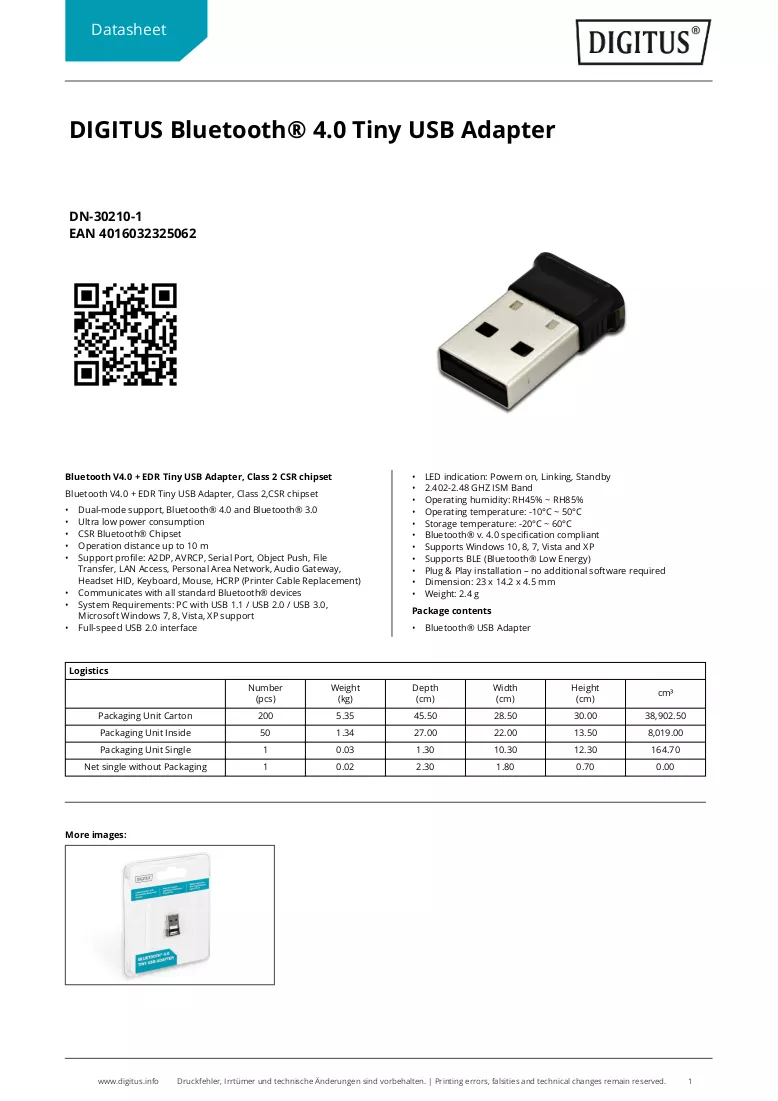

Digitus DN-30210-1 Bluetooth adapter

The Bluetooth V4.0 + EDR Tiny USB Adapter is a compact Class 2 USB dongle based on a CSR chipset that enables wireless data transfer between a PC and a notebook via Bluetooth 4.0. The adapter supports Plug & Play operation without the need for additional driver installation and provides a stable connection over typical operating distances up to 10 m.

Advantages

The tiny USB form factor saves USB ports and is easy to transport. Plug & Play functionality removes the need to install drivers manually, simplifying setup. Bluetooth 4.0 with EDR and the Class 2 radio deliver reliable signal performance for everyday file transfer and peripheral connections at ranges up to 10 metres.

Key specifications

• Bluetooth version: 4.0 + EDR
• Chipset: CSR
• Device class: Class 2
• Interface: USB (tiny dongle)
• Operating range: up to 10 m
• Installation: Plug & Play, no additional drivers required

How to use

Insert the adapter into an available USB port on your PC or notebook. The operating system should recognize the device automatically and enable Bluetooth functionality without manual driver installation. On your PC and the target Bluetooth device, enable Bluetooth and pair the devices following your system prompts. Maintain a line-of-sight or typical indoor environment within about 10 metres for stable connectivity.

Recommendations

For optimal performance, insert the adapter directly into a USB port on the host device rather than using an unshielded USB hub, and keep the adapter within 10 m of the connected device. Ensure the host system supports Bluetooth 4.0 profiles required by your peripherals.
