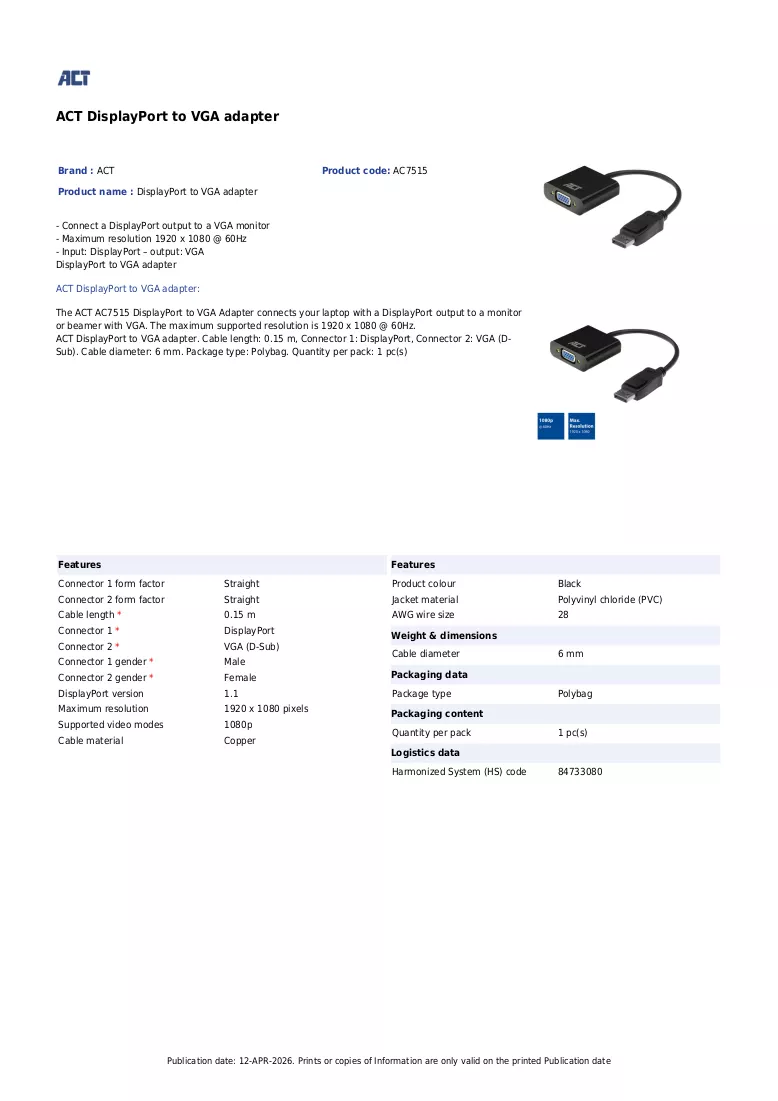

DisplayPort–VGA adapter ACT AC7515

The ACT AC7515 DisplayPort to VGA adapter connects a device with a DisplayPort output to a VGA (D-Sub) monitor or beamer. The compact adapter features a 0.15 m cable and supports a maximum resolution of 1920 x 1080 at 60 Hz, making it suitable for connecting older VGA displays to modern laptops and workstations.

Advantages

This DisplayPort to VGA adapter is small and lightweight with a 6 mm cable diameter and a 0.15 m length for minimal cable clutter. It provides a straightforward, reliable analog video conversion from DisplayPort to VGA without the need for external power. The black finish integrates unobtrusively with most devices and display setups.

Suitable for

• Connecting laptops or desktops with DisplayPort output to VGA monitors
• Presentations with beamers that accept VGA input
• Using older VGA displays with modern DisplayPort-equipped devices

Key specifications

• Maximum resolution: 1920 x 1080 @ 60 Hz
• Cable length: 0.15 m
• Cable diameter: 6 mm
• Connector 1: DisplayPort
• Connector 2: VGA (D-Sub)
• Colour: Black
• Brand: ACT, Model: AC7515, EAN: 8716065491258

How to use

Connect the DisplayPort plug to the DisplayPort output of your laptop or desktop. Attach the VGA end to the VGA input of the monitor or beamer and secure the VGA connector screws if present. Set the display resolution on your computer to 1920 x 1080 @ 60 Hz or a lower supported resolution if necessary. No drivers are typically required; the adapter performs a passive conversion to the VGA signal.

Recommendations

For best results, use short cable runs and avoid excessive bending of the 0.15 m cable. If the target display does not detect a signal, verify the DisplayPort source output is enabled and try adjusting the computer's display settings or reconnecting both ends.
