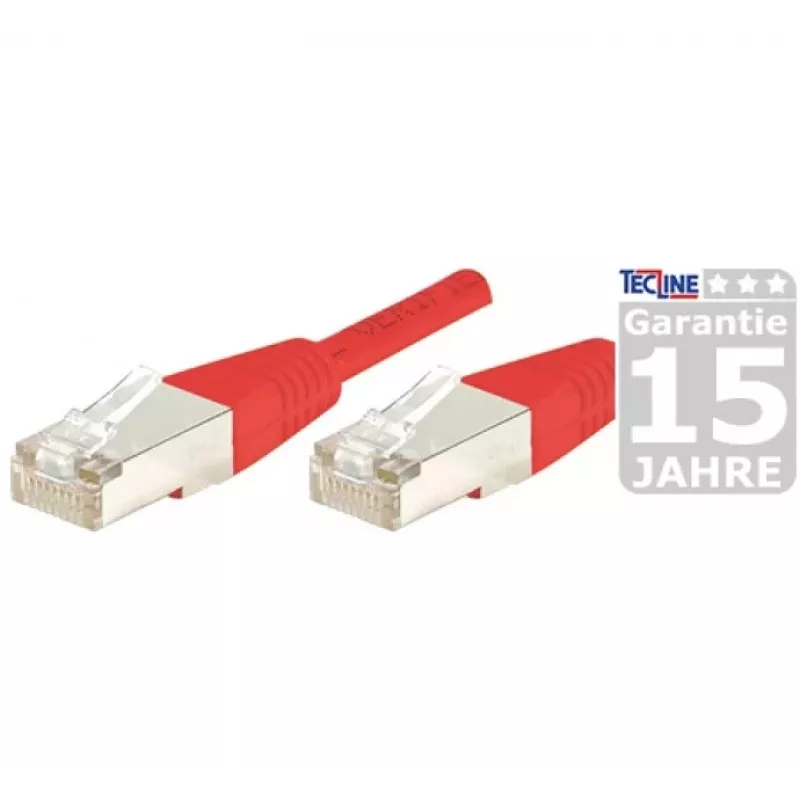

EXERTIS CONNECT Cat6a S/FTP patchkábel, piros, 1 m 858302

High-speed networks demand cables that can handle 10 Gigabit Ethernet without interference. This red 1-meter Cat6a patch cable with S/FTP shielding ensures reliable, high-bandwidth connections in data centers, offices, and industrial environments.

Who is it for

Network administrators and installers who need a durable, high-performance cable for 10GBASE-T links. Ideal for patch panels, switches, and servers in structured cabling systems.

Main features

• Cat6a performance up to 500 MHz, supporting 10 Gigabit Ethernet
• S/FTP (PIMF) shielding: foil around each pair plus overall braid for excellent noise immunity
• Stranded copper conductors (AWG 26/7) for flexibility and easy routing
• Gold-plated RJ45 connectors (50µ) for reliable contacts and corrosion resistance
• Slim molded boot protects the cable from bending at the connector
• LSZH jacket: low smoke and halogen-free for safety in enclosed spaces

Specifications

• Length: 1 m
• Colour: Red
• Shielding: S/FTP (PIMF)
• Category: Cat6a
• Bandwidth: 500 MHz
• Data rate: 10 Gbps
• Conductor: Copper, AWG 26/7 stranded
• Connector: RJ45, gold-plated (50µ)
• Jacket: LSZH
• Outer diameter: 6.0 mm
• Wiring: TIA/EIA 568B (1:1)
• Standards: ISO/IEC 11801, EN 50173, EIA/TIA 568C
• Operating temperature: -20°C to +60°C
• Flammability: IEC 60332-1

Tips

For best performance, avoid sharp bends and keep the cable away from power lines. The slim boot allows high-density patching without blocking adjacent ports.
