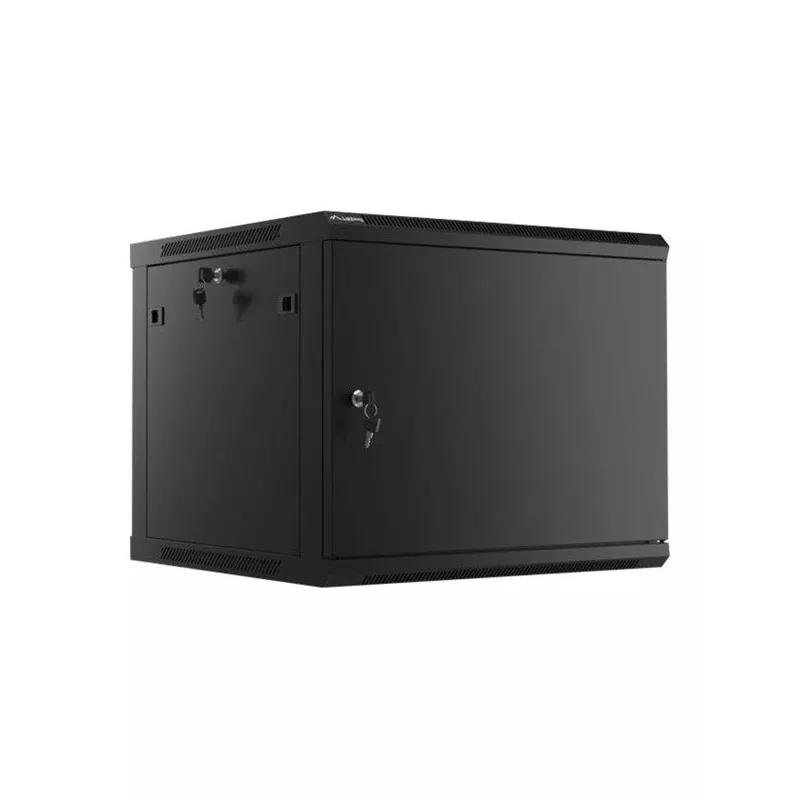

Fali rack Lanberg WF01-6609-00B

Wall mount, single section Lanberg cabinet WF01-6609-00B is a 19" enclosure for network and low-voltage equipment with a maximum load capacity of 60 kg. It is intended for use in networks, server rooms, small and medium businesses and supports installations such as cable TV, alarm and fire protection systems, access control, CCTV and IP surveillance. The cabinet is supplied as a flat pack for self-assembly and is made of high grade cold rolled steel.

Advantages

The cabinet features IP20 protection, a front door that can open and rotate up to 180° with a lock, and removable side panels with locks. Top and bottom cable entry panels simplify cable routing. The flat-pack design reduces transport volume and the set includes rail mounts, M6 cage nuts and blank entry panels for quick installation.

Key specifications

• Model: WF01-6609-00B
• Mounting type: Wall mount, single section
• Rack size: 19"
• Maximum load capacity: 60 kg
• Material: Cold rolled steel
• Protection degree: IP20
• Front door: Opens and rotates up to 180°; lockable
• Side panels: Removable; locks included
• Cable entry: Top and bottom panels
• Package: Flat pack for self-assembly; includes rail mounts, M6 cage nuts, blank entry panels

How to use

Assemble the cabinet following the included instructions, mount it securely to a suitable wall structure, and install 19" equipment using the supplied rail mounts and M6 cage nuts. Route cables through the top or bottom entry panels, secure side panels and lock the front door after completing installation to protect the equipment.

Recommendations

Verify that the mounting wall can support the cabinet and the specified 60 kg load; use appropriate anchors. For IP20-rated indoor environments only and avoid exposure to moisture or dust beyond the rated protection.
