InLine 92501M kábelcsatlakozó sorkapocs / D-Sub 9 zöld

Time savings during installation:Quick wiring via screw terminals for 14–26 AWG – tool-assisted with flat-head screwdriver ≤ 2.5 mm.
Dual interface for flexible connection: Equipped with a D-Sub-9 female connector and a D-Sub-9 male connector – ideal for serial connections in both directions or as an interface switch.
Versatile industrial use:Suitable for structured installations in control cabinets, machine control, test setups, and mobile service applications.
DIN rail mounting for structured installations: The integrated DIN rail housing allows direct mounting on mounting rails – space-saving, robust, and suitable for workshop use.
High signal quality:An insulation resistance ≥ 10 MΩ at 300 V DC and a rated current of 0.8 A per pin ensure reliable signal transmission – even under continuous load.

The InLine® D-Sub 9 terminal block with combined female and male connector design enables flexible and structured wiring of serial interfaces within a single module. The dual D-Sub interface (male & female) makes the product ideal as a transfer or connection point between two devices.
The side-accessible screw terminals with pressure plate support a connection range of 14–26 AWG and enable fast, secure wiring with a flat-blade screwdriver ≤ 2.5 mm. The pre-assembled DIN rail clip allows direct mounting on standard top-hat rails – ideal for professional control and test setups.

D-Sub 9 interfaces:1× female connector, 1× male connector, with mounting threads (UNC #4-40)
Connection technology:Screw terminal with pressure plate
Connection range:14–26 AWG
Actuation:With flat-blade screwdriver ≤ 2.5 mm
Rated current:0.8 A per pin
Max. operating voltage:100 V between two signals
Insulation resistance:≥ 10 MΩ @ 300 V DC
Operating temperature:–20 °C to +70 °C
Insulation layer:EVA insulation on underside
Mounting: Housing for direct mounting on DIN rail
Dimensions:approx. 70 × 53 × 51 mm (L x W x H)

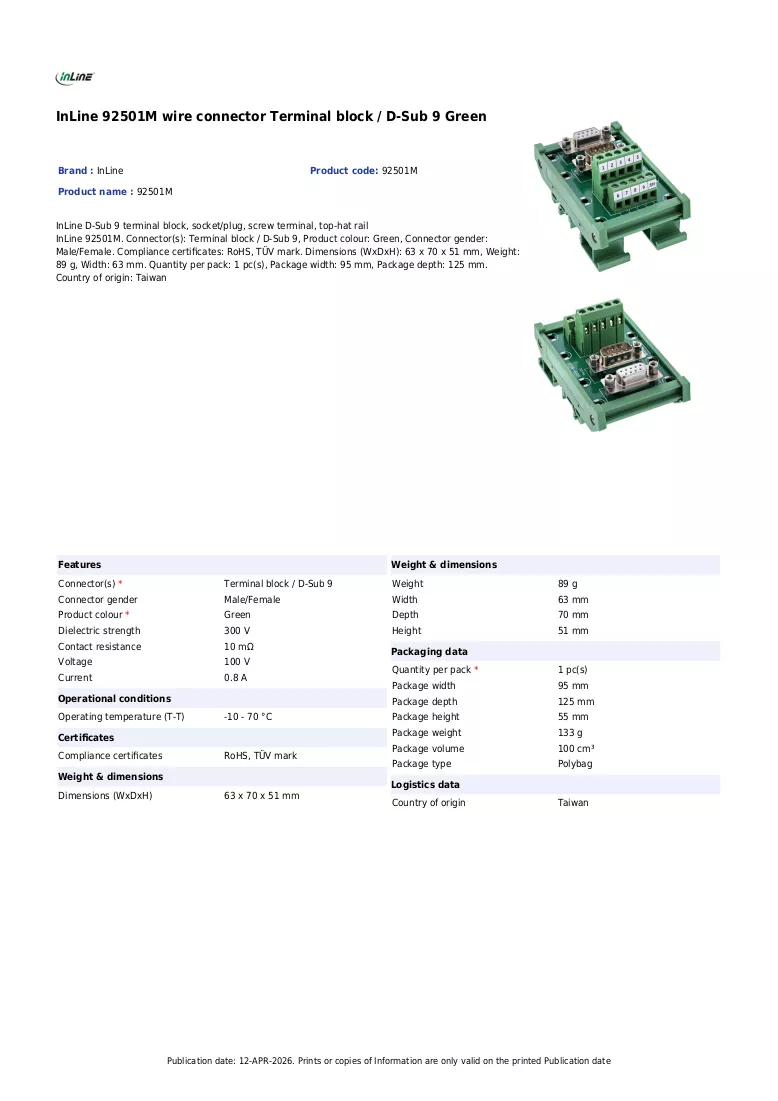

InLine 92501M. Connector(s): Terminal block / D-Sub 9, Product colour: Green, Connector gender: Male/Female. Compliance certificates: RoHS, TÜV mark. Dimensions (WxDxH): 63 x 70 x 51 mm, Weight: 89 g, Width: 63 mm. Quantity per pack: 1 pc(s), Package width: 95 mm, Package depth: 125 mm. Country of origin: Taiwan
