InLine 92502E kábelcsatlakozó sorkapocs / D-Sub 25 zöld

Time savings during installation:Quick wiring via screw terminals for 18–26 AWG – tool-assisted with flat-head screwdriver ≤ 2.5 mm.
Stable connection thanks to screw lock:The 2-row D-Sub-25 female connector is equipped with a mounting thread (UNC #4-40) and enables secure mechanical fixation with matching plugs.
Versatile use in industry:Ideal for serial control lines in mechanical engineering, automation, test benches, or signal distribution.
Compact design: Measuring approx. 86.5 × 53.3 × 18 mm, the terminal block can be integrated into existing installations in a space-saving manner, even with a high number of poles.
High signal quality:An insulation resistance of ≥ 10 MΩ at 300 V DC and a rated current of 0.7 A per pin ensure reliable signal transmission – even under continuous load.

The InLine® D-Sub 25 terminal block with female connector in a 2-row design enables structured wiring of up to 25 serial signals via screw terminals with pressure plate. Single wires in the range of 18–26 AWG can be connected quickly and securely – without soldering. Actuation is tool-assisted with a flat-blade screwdriver ≤ 2.5 mm.
Thanks to the integrated screw lock (UNC #4-40), the socket can be securely screwed to matching connectors – vibration-proof and durable. The flat and compact design is suitable for industrial applications with high signal density and limited space.

D-Sub 25 socket:2-row, with mounting thread for plug locking (UNC #4-40)
Connection technology:Screw terminal with pressure plate
Connection range:18–26 AWG
Actuation:With flat-blade screwdriver ≤ 2.5 mm
Rated current:0.7 A per pin
Max. operating voltage:100 V between two signals
Insulation resistance:≥ 10 MΩ @ 300 V DC
Operating temperature:–20 °C to +105 °C
Insulation layer:EVA insulation on underside
Dimensions:approx. 87 × 53 × 18 mm (L × W × H)

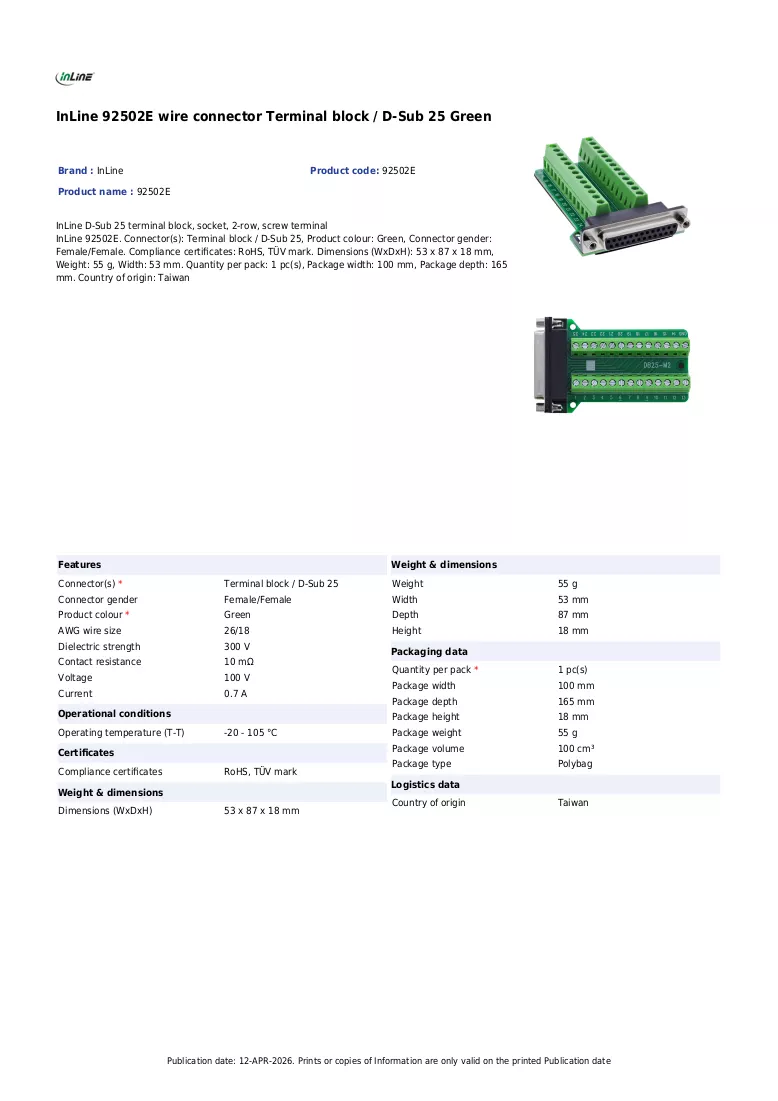

InLine 92502E. Connector(s): Terminal block / D-Sub 25, Product colour: Green, Connector gender: Female/Female. Compliance certificates: RoHS, TÜV mark. Dimensions (WxDxH): 53 x 87 x 18 mm, Weight: 55 g, Width: 53 mm. Quantity per pack: 1 pc(s), Package width: 100 mm, Package depth: 165 mm. Country of origin: Taiwan
