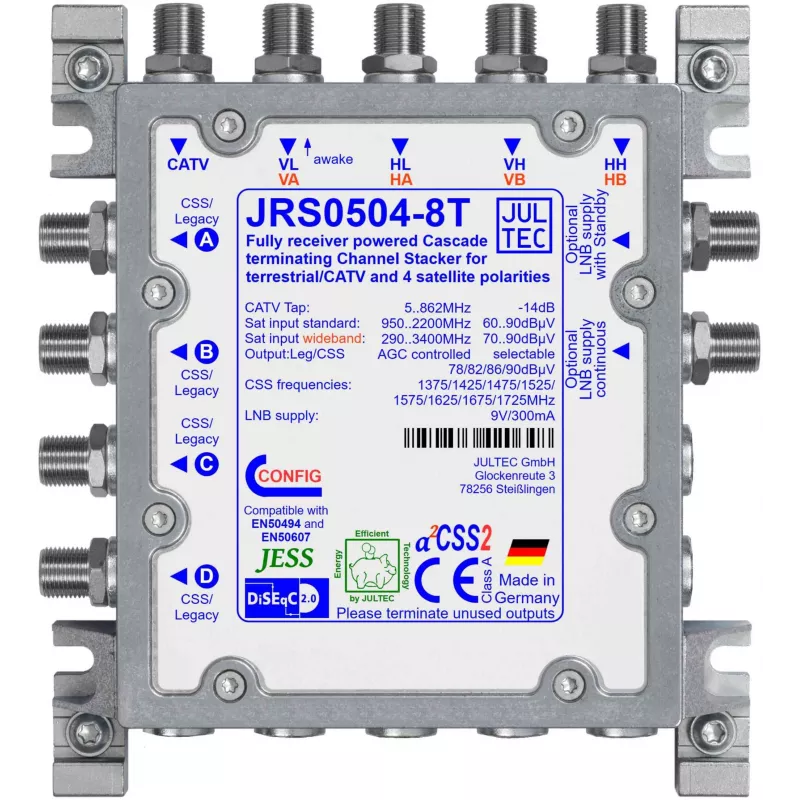

JULTEC JRS0504-8T Single Cable multiswitch 5/4/8 UB

The JULTEC JRS0504-8T is a high-performance single cable multiswitch designed for modern satellite distribution systems. It supports Unicable I (EN 50494) and Unicable II / JESS (EN 50607) protocols, allowing up to 8 user bands (UBs) over a single coaxial cable. With 4 SAT inputs (HL, VL, HH, VH) and 1 terrestrial input, it is ideal for multi-room installations where minimal cabling is required.

Advantages

Simplifies installation by reducing cable runs; supports both legacy and next-generation satellite receivers; compact indoor design; low power consumption.

Suitable for

• Single-cable satellite distribution in apartments, hotels, and residential homes
• Systems requiring up to 8 user bands for multiple receivers or recording devices
• Integration with Unicable II / JESS compatible LNBs and receivers

Key specifications

• Product Type: Single Cable Multiswitch
• SAT Inputs: 4 (HL, VL, HH, VH)
• Terrestrial Inputs: 1
• Unicable II / JESS Outputs: 1
• Number of User Bands (UBs): 8
• Control Protocol: EN 50494 (Unicable I), EN 50607 (Unicable II / JESS)
• SAT Frequency Range: 950 - 2150 MHz
• Terrestrial Frequency Range: 5 - 862 MHz (passive)
• SAT Gain: 0 dB (typical)
• Terrestrial Attenuation: 2 dB (typical)
• Max Output Level (8 UBs): 95 dBµV
• LNB Power Supply: Via external power supply (max. 500mA)
• Power Consumption (without LNB): 1.5 W
• Power Consumption (with LNB): 10 W (max.)
• DiSEqC Support: DiSEqC 2.0
• Mounting Type: Indoor

Recommendations

For optimal performance, use with a compatible Unicable II LNB and ensure the power supply is rated for the connected LNB current. This multiswitch is an excellent choice for expanding your satellite system without additional cabling.
