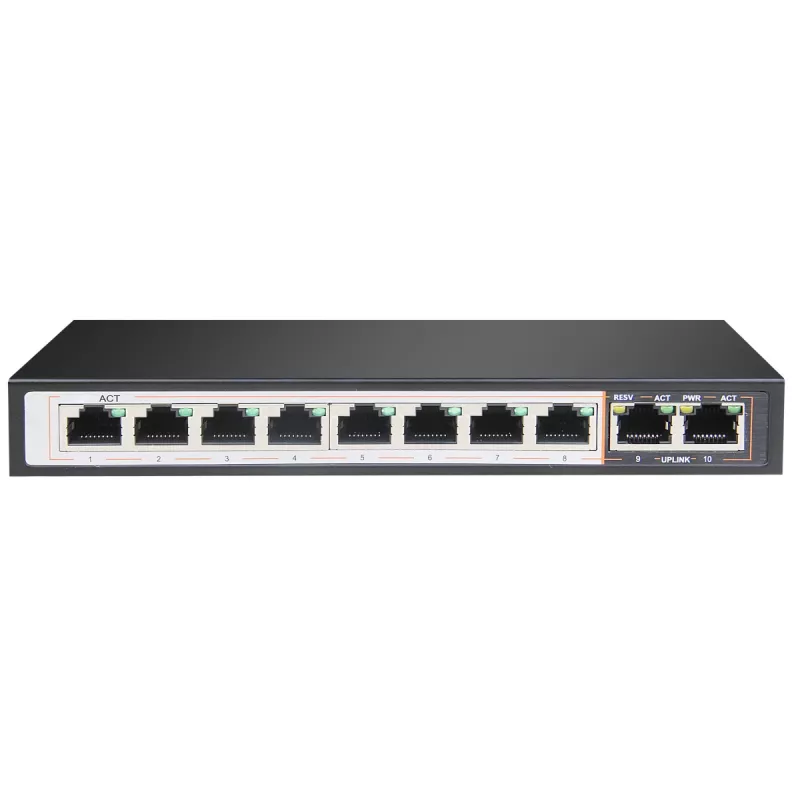

Lupus Electronics LUPUSNET 10 portos PoE switch (10997)

The Lupus Electronics LUPUSNET 10 Port PoE Switch (10997) is a reliable and cost-effective unmanaged switch designed for small to medium-sized networks. With 8 PoE ports and 2 Gigabit uplink ports, it provides power and data connectivity for IP cameras, access points, and other PoE devices. The switch supports IEEE 802.3af/at PoE standards with a total power budget of 120W, making it ideal for surveillance and IoT deployments.

Advantages

This switch offers plug-and-play installation with no configuration required. Its fanless design ensures silent operation, making it suitable for office or home environments. The Extend Mode (CCTV Mode) allows PoE transmission up to 250 meters at 10 Mbps, perfect for long-distance camera connections. Built-in 6 KV lightning protection enhances reliability in outdoor or unstable power conditions.

Suitable for

• IP surveillance systems (CCTV)
• Wireless access points
• VoIP phones
• Small business networks
• Home automation

Key specifications

• 10 Ethernet ports: 8 x 10/100 Mbps PoE + 2 x 10/100/1000 Mbps uplink
• PoE standard: IEEE 802.3af/at
• Total PoE power budget: 120 W (max 30 W per port)
• Switching capacity: 5.6 Gbps
• Packet forwarding rate: 4.16 Mpps
• MAC address table: 2K entries
• Jumbo frame support: 1.5 KB
• Management: Unmanaged
• Special features: Extend Mode (CCTV), Port-based VLAN, QoS
• Lightning protection: 6 KV
• Power supply: Internal AC 100-240V, 50/60Hz
• Operating temperature: -10°C to 55°C
• Cooling: Fanless
• Mounting: Desktop / Wall-mount

Recommendations

For optimal performance, use quality Cat5e or higher Ethernet cables. The Extend Mode is recommended for distances over 100 meters but reduces speed to 10 Mbps. Ensure total PoE power consumption does not exceed 120W.
