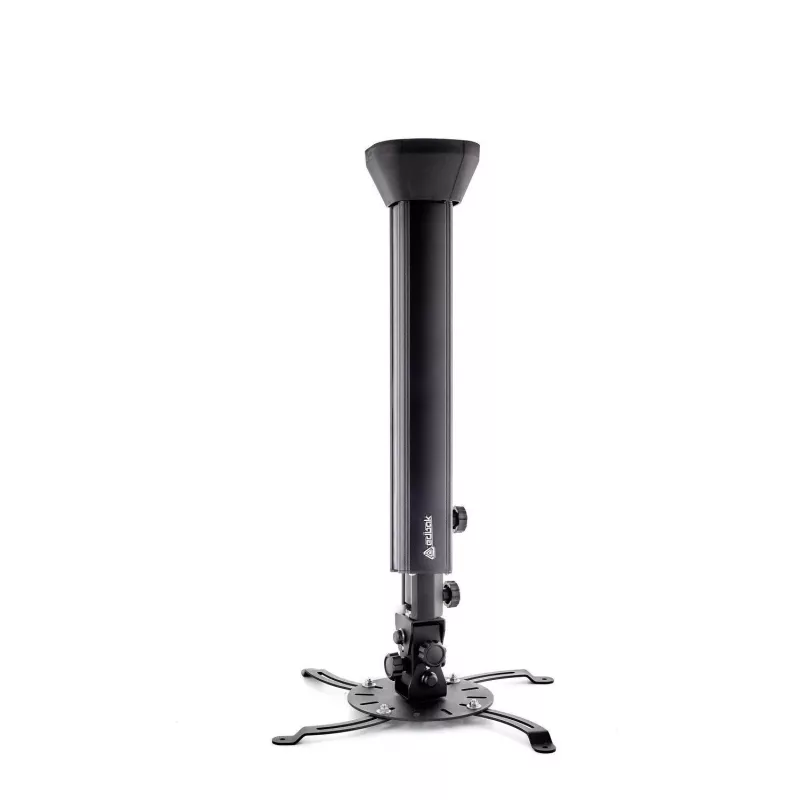

Mennyezeti tartó Edbak PMV200W

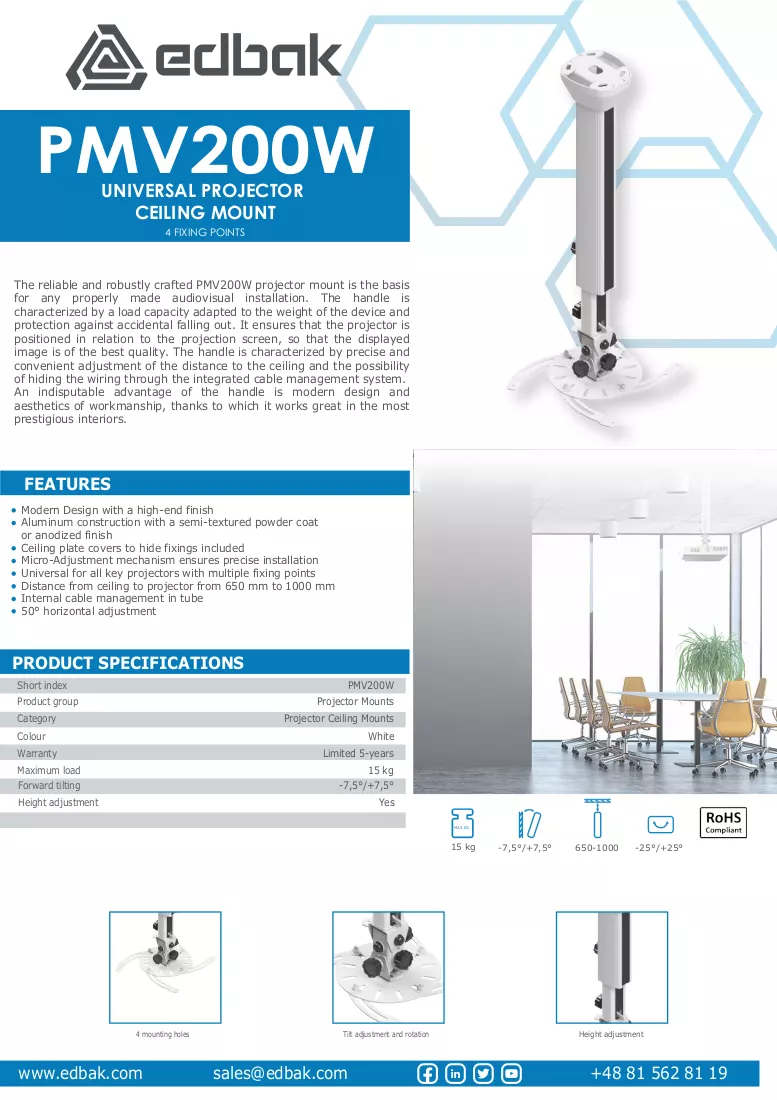

The Edbak PMV200W ceiling mount provides a stable and secure platform for installing projectors. Designed to support projectors up to 15 kg, this white mount combines a compact footprint (180 mm width, 650 mm height, 180 mm depth) with an integrated cable routing system and adjustable distance to the ceiling to ensure correct projector positioning and image alignment.

Advantages

The PMV200W is solidly constructed to protect against accidental falls and maintains projector stability during use. Its precise adjustment mechanism allows fine-tuning of the projector distance from the ceiling, while the built-in cable routing conceals wiring for a neat installation. The mount’s modern white finish and neat workmanship make it suitable for professional and premium interiors.

Suitable for

• Ceiling installation of projectors up to 15 kg
• Conference rooms and classrooms
• Home theaters and small auditoriums
• Installations requiring concealed cabling and neat appearance

Key specifications

• Model: Edbak PMV200W (MPN: PMV200W)
• Maximum load capacity: 15 kg
• Dimensions (W×H×D): 180 × 650 × 180 mm
• Product colour: White
• Mounting type: Ceiling
• Product weight: 5 kg
• EAN: 5902841133457

How to use

Mount the PMV200W to a suitable ceiling structure using appropriate fasteners for the ceiling material and the expected load. Attach the projector to the mount plate and adjust the distance to the ceiling and the orientation until the projected image aligns with the screen. Route the power and signal cables through the integrated cable channel before final tightening to keep wires concealed and secure.

Recommendations

Verify the ceiling’s load-bearing capacity and use suitable fixings for the building material. Perform final alignment with a test image and check all fastenings periodically for safety. Consider professional installation for suspended ceilings or complex setups.
