Multibrackets M Universal Wallmount HD 100kg 900x600

The Multibrackets M Universal Wallmount Fixed and Tilt HD is a heavy-duty wall mount designed for extra-large displays in commercial and public environments. It supports screens from 60" up to 100" with a maximum load capacity of 100 kg and fits VESA patterns up to 900 x 600 mm. The mount has a low-profile design with a wall distance of 3.2 cm and is supplied in black.

Advantages

The mount combines a universal interface with installer-focused features that simplify alignment and maintenance. Adjustable leveling screws allow the screen to be leveled after installation. The design supports both landscape and portrait orientations and covers a wide VESA range to suit most large-screen models. Its 100 kg capacity and slim profile deliver secure, space-saving installations for heavy touchscreens and extra-large displays.

Suitable for

• Commercial digital signage installations
• Public display screens in airports, stations or shopping centres
• Heavy touchscreens in interactive kiosks
• Large-format screens in meeting rooms and conference facilities

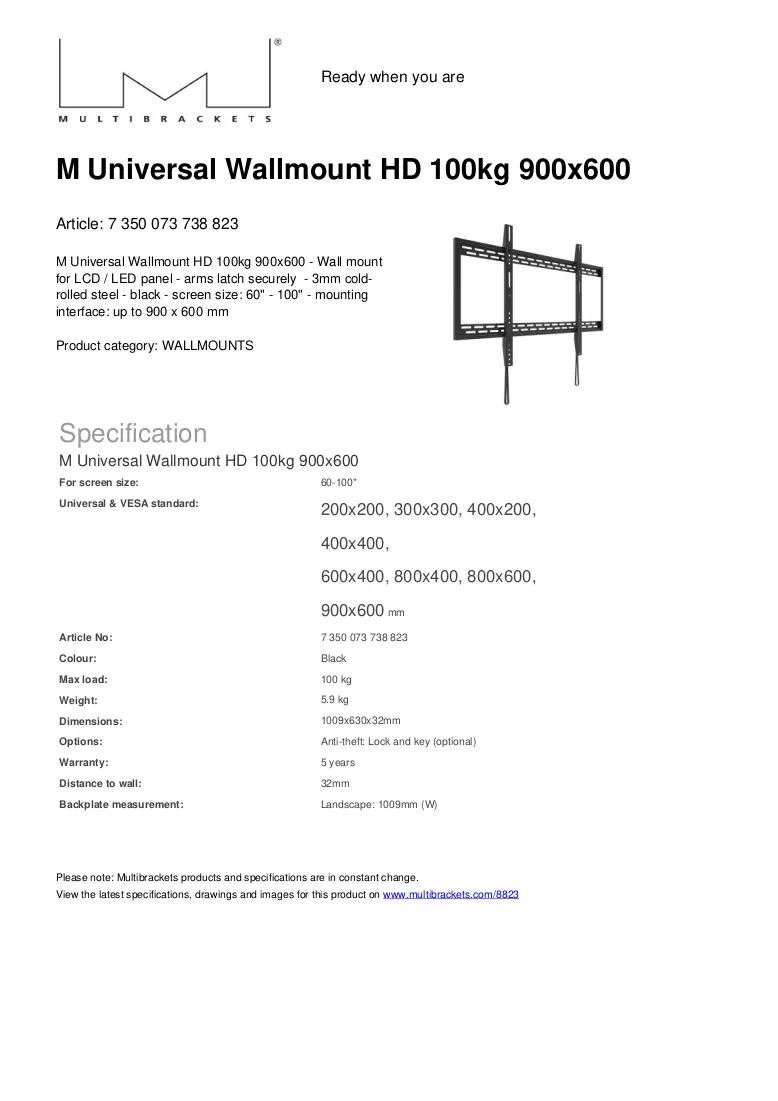

Key specifications

• Maximum VESA mount: 900 x 600 mm
• Maximum weight capacity: 100 kg
• Supported screen size: up to 100"
• Wall distance: 3.2 cm
• Colour: Black
• Product weight: 5.9 kg
• Number of displays supported: 1

How to use

Mark and locate suitable wall studs or fixings for the expected load and position the mounting bracket at the desired height. Secure the wall plate using appropriate fixings for your wall type, then attach the universal interface plate to the display using the correct VESA holes and screws. Lift the display onto the wall plate and use the adjustment screws to level the screen. Confirm all fastenings are tightened and that the installation is stable before use.

Recommendations

For safety and long-term reliability, install the mount on structurally sound walls using fixings rated for a 100 kg load and use a secondary helper during installation to handle the display. Verify VESA compatibility and use the appropriate screw sizes for the display model.
