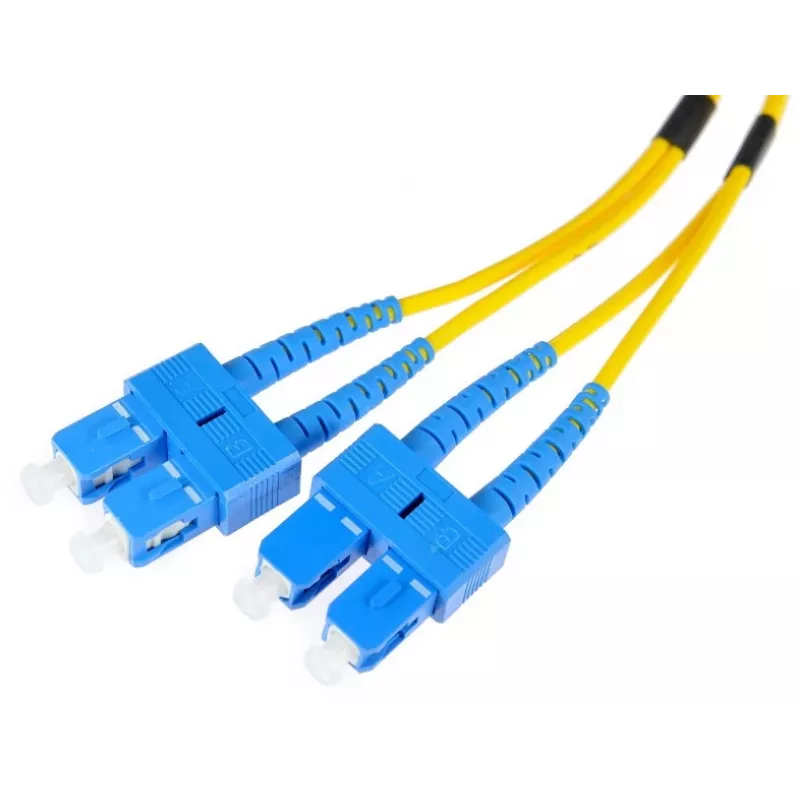

OPTIX egymódusú duplex SC/UPC-SC/UPC optikai patch kábel 2m

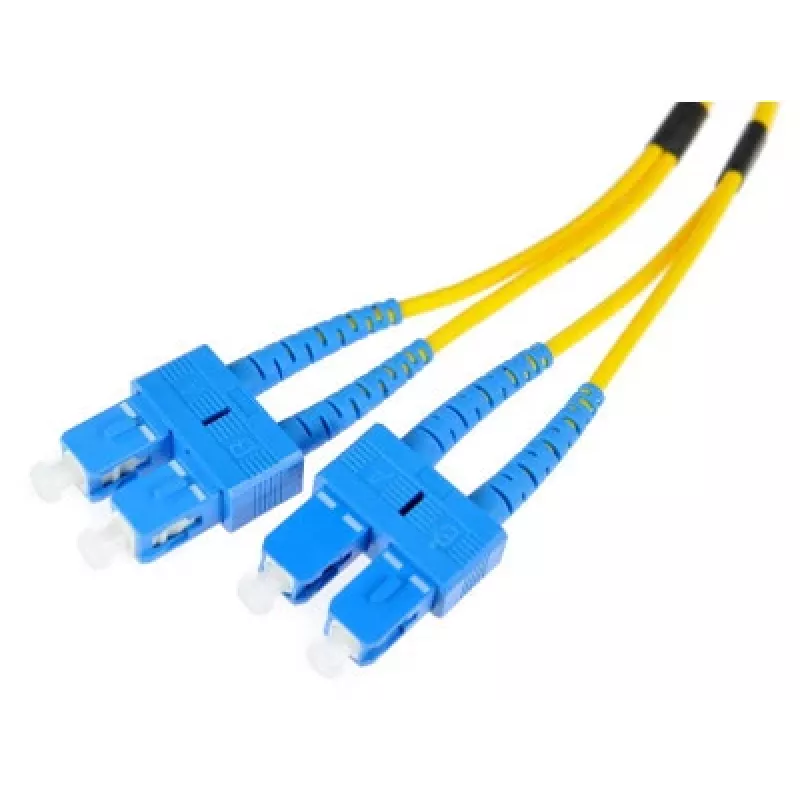

The OPTIX 12347 is a high-quality single-mode duplex fiber optic patch cable designed for reliable and high-speed data transmission. With SC/UPC connectors on both ends and a length of 2 meters, it is ideal for connecting network equipment in data centers, telecommunications, LAN, and FTTx applications. The cable features a 9/125 µm core/cladding diameter, low insertion loss (≤0.3 dB), and high return loss (≥50 dB), ensuring excellent signal integrity. The yellow PVC jacket provides durability and easy identification, while the ceramic ferrule ensures precise alignment. Compliant with RoHS and CE standards, this patch cable delivers consistent performance in operating temperatures from -20°C to +70°C.

Advantages

Low insertion loss and high return loss for optimal signal quality. Durable PVC jacket with 3.0 mm diameter for flexibility and protection. Ceramic ferrule ensures stable connection. RoHS and CE compliant for environmental and safety standards.

Suitable for

• Data centers
• Telecommunications networks
• Local area networks (LAN)
• FTTx deployments

Key specifications

• Fiber Type: Single-Mode (SM)
• Cable Type: Duplex
• Connector Type A: SC/UPC
• Connector Type B: SC/UPC
• Cable Length: 2 meters
• Fiber Core/Cladding Diameter: 9/125 µm
• Polish Type: UPC
• Insertion Loss: ≤ 0.3 dB
• Return Loss: ≥ 50 dB
• Jacket Material: PVC
• Jacket Color: Yellow
• Cable Diameter: 3.0 mm
• Operating Temperature: -20°C to +70°C
• Storage Temperature: -40°C to +85°C
• Minimum Bend Radius: 30 mm
• Ferrule Material: Ceramic
• Compliance: RoHS, CE

Recommendations

For optimal performance, ensure connectors are clean before installation. Avoid bending the cable beyond the minimum bend radius. Suitable for use with single-mode transceivers and equipment.
