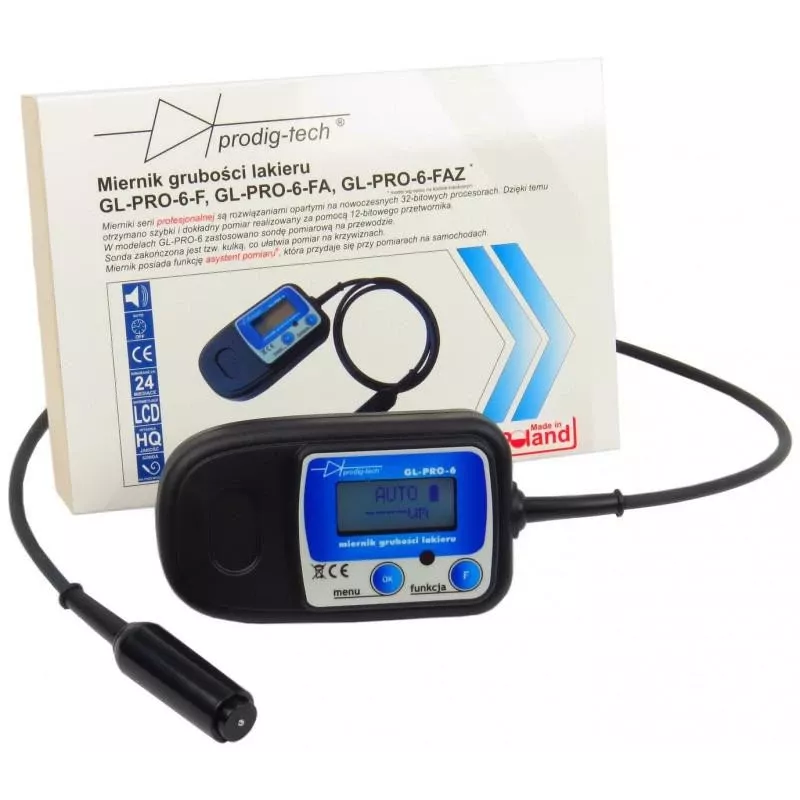

Prodig-tech GL-PRO-6-FA festékvastagság-mérő

The Prodig-tech GL-PRO-6-FA is a professional paint thickness gauge designed for precise measurement of coatings on steel, galvanized steel, and aluminum substrates. Featuring automatic substrate detection, a backlit LCD display, and built-in UV lamp, this device is ideal for automotive refinishing, quality control, and industrial inspection.

Advantages

High accuracy with ±(2% + 2 µm) for 0-500 µm range; automatic Fe/Fe+Zn/Al detection; stores up to 200 readings; includes USB data transfer and software; integrated UV lamp and LED flashlight for detailed inspection.

Suitable for

• Automotive paint thickness measurement
• Quality control in manufacturing
• Corrosion protection coating inspection
• Industrial maintenance and asset management

Key specifications

• Measurement range: 0-2000 µm
• Resolution: 1 µm (0-1000 µm), 10 µm (1000-2000 µm)
• Accuracy: ±(2% + 2 µm) for 0-500 µm, ±(2% + 10 µm) for 500-2000 µm
• Substrates: Steel (Fe), Galvanized Steel (Fe+Zn), Aluminum (Al)
• Probe: Integrated, spring-loaded
• Display: Backlit LCD
• Memory: Up to 200 readings
• Data transfer: USB to PC (software included)
• Power: 2x AA batteries (included)
• Auto shut-off: After 2 minutes
• Operating temperature: -20°C to +40°C
• Units: µm, mil

Recommendations

For best results, calibrate the gauge before each use using the included calibration plates. The device is suitable for both professional and DIY applications.
