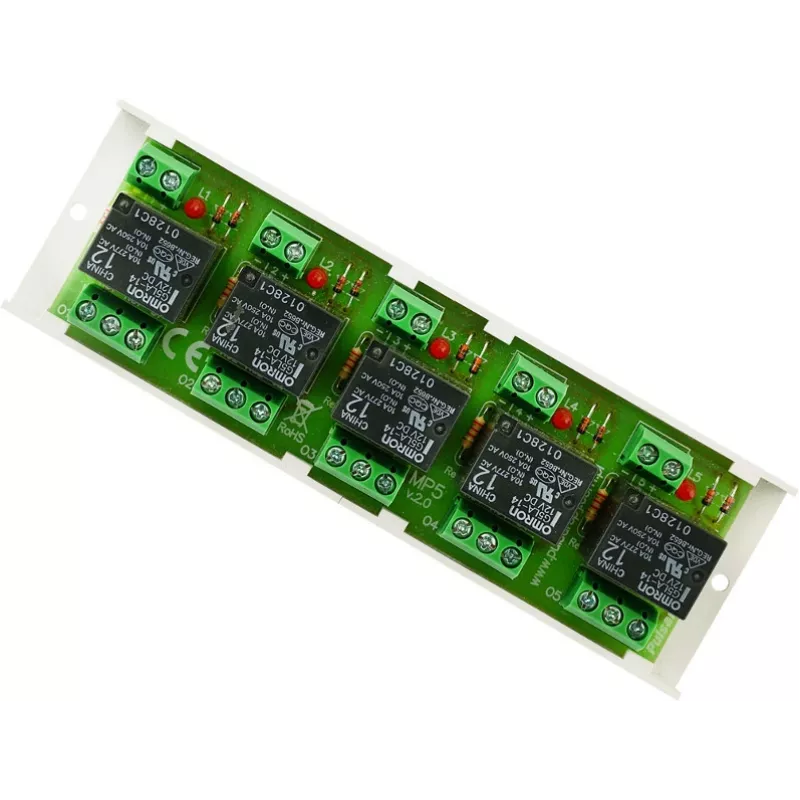

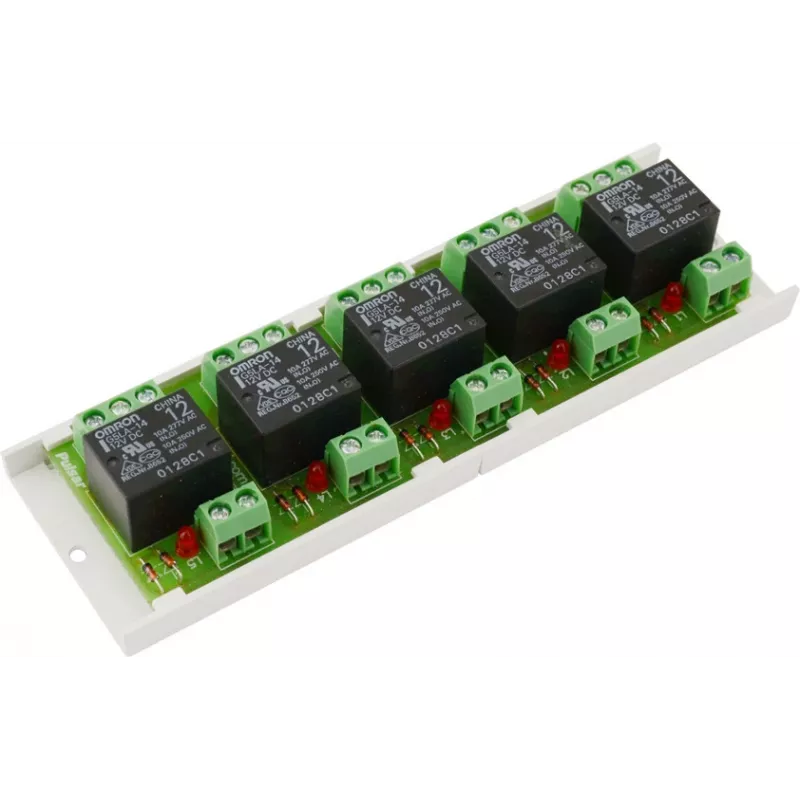

PULSAR AWZ520 relémodul

The PULSAR AWZ520 is a versatile relay module designed for industrial and automation applications. It features a single SPDT relay with opto-isolated trigger input, providing reliable switching for low-power circuits. The module operates on a wide supply voltage range of 10V to 30V DC, making it suitable for various control systems.

Advantages

Opto-isolated input ensures safe and noise-free signal transmission. Compact design with multiple mounting options (tape or screws) allows easy integration into existing setups. LED indicator provides clear visual status of relay operation.

Suitable for

• Industrial control panels
• Building automation systems
• Signal switching in security and alarm systems
• Low-power load switching

Key specifications

• Supply Voltage: 10V ÷ 30V DC
• Current Consumption: 20 mA @ 12V DC, 10 mA @ 24V DC
• Relay Type: SPDT (Single Pole Double Throw)
• Contact Configuration: NO, NC, C
• Max. Contact Current: 1 A @ 30V DC (resistive), 0.5 A @ 50V AC (resistive)
• Input Type: Opto-isolated trigger input
• Output Type: Potential-free relay contacts
• Operating Temperature: -10°C to +40°C
• Relative Humidity: 20% to 90% RH
• Mounting: Mounting tape or screws
• LED Indicator: Yes (relay status)
• Protection: Optical isolation
• Compliance: CE

Recommendations

For optimal performance, ensure the supply voltage is within the specified range and the load does not exceed the maximum contact ratings. Use appropriate wiring and mounting to avoid mechanical stress.
