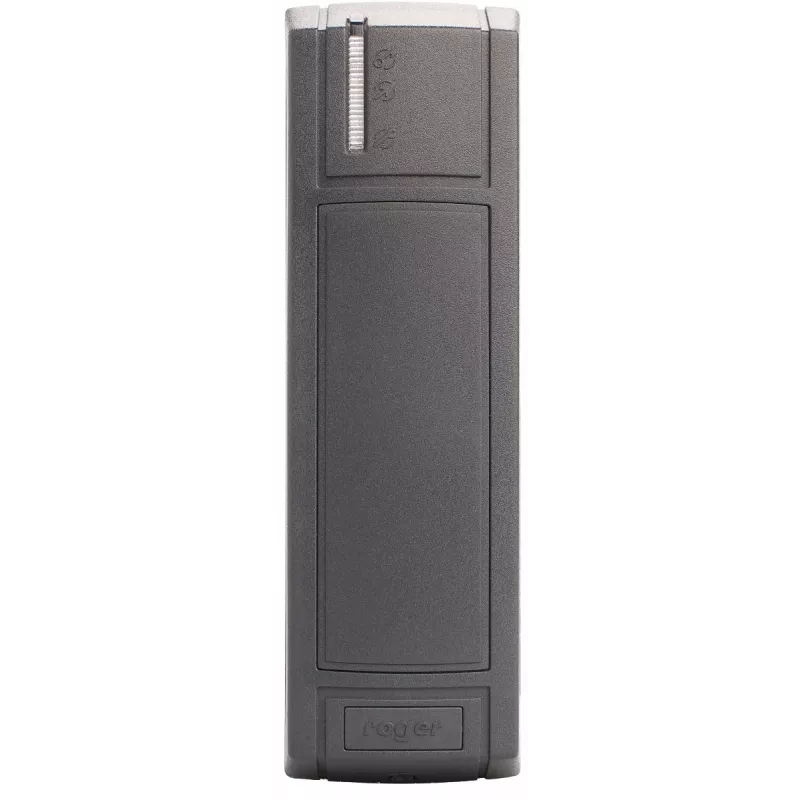

ROGER PRT12LT-BK közelségolvasó

The ROGER PRT12LT-BK is a proximity reader with a supply voltage of 10-15 VDC and a current consumption of 45 mA. It offers a card read range of up to 15 cm and includes an anti-tamper contact (NC, 50 mA/24 V).

Key features

• Proximity reader
• Supply voltage: 10-15 VDC
• Current consumption: 45 mA
• Anti-tamper contact: NC, 50 mA/24 V
• Card read range: up to 15 cm
• Environmental class: Class IV, general outdoor conditions, ambient temperature -25°C to +60°C, relative humidity 10-95% (non-condensing)
• Dimensions: with standard housing base 152.5 x 46 x 23 mm; with thicker housing base 152.5 x 46 x 35 mm
• Weight: approx. 150 g
• Certificate: CE

Specifications

• Brand: Roger
• MPN: PRT12LT-BK
• Supply voltage: 10-15 VDC
• Current consumption: 45 mA
• Anti-tamper contact: NC, 50 mA/24 V
• Card read range: up to 15 cm
• Environmental class: Class IV, general outdoor conditions, ambient temperature -25°C to +60°C, relative humidity 10-95% (non-condensing)
• Dimensions: with standard housing base 152.5 x 46 x 23 mm; with thicker housing base 152.5 x 46 x 35 mm
• Weight: approx. 150 g
• Certificate: CE
