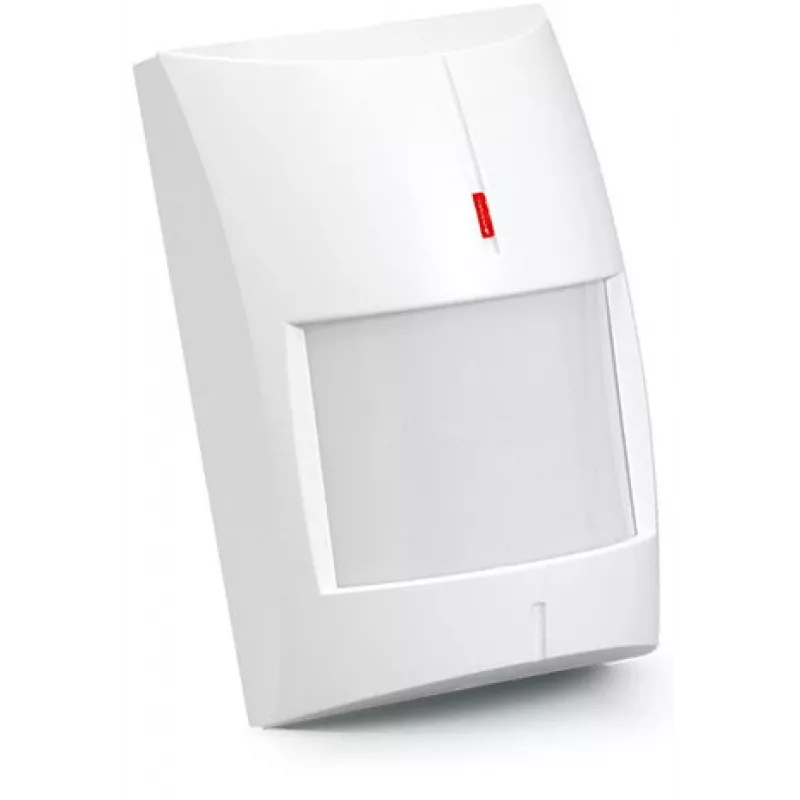

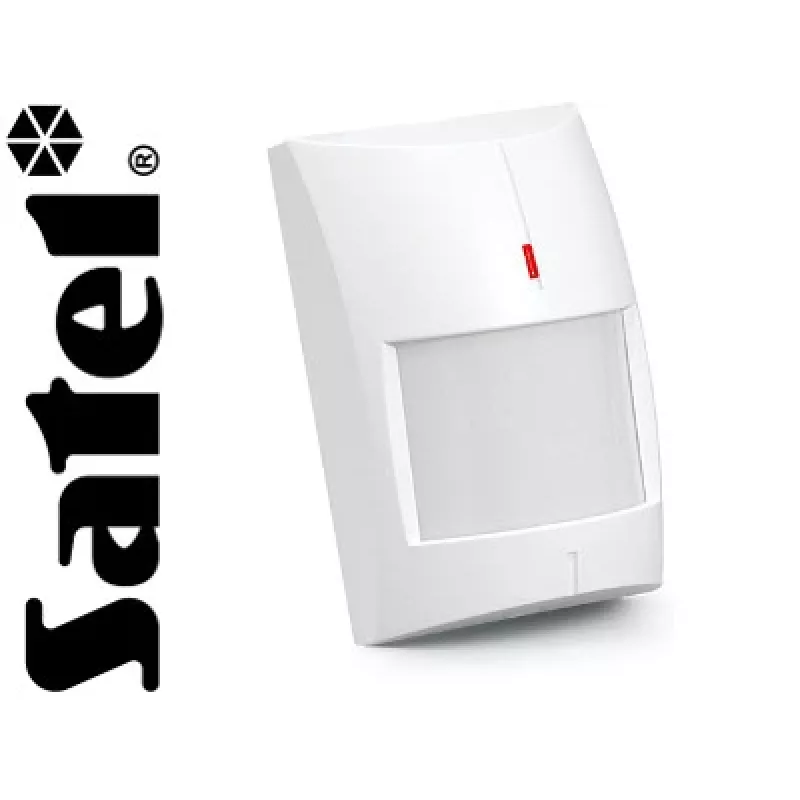

SATEL PIR mozgásérzékelő GRAPHITE

The SATEL GRAPHITE is a high-performance passive infrared (PIR) motion detector designed for reliable intrusion detection in residential and commercial security systems. Engineered with advanced digital signal processing and temperature compensation, it ensures accurate detection while minimizing false alarms. The sleek graphite housing blends seamlessly with modern interiors.

Advantages

Digital temperature compensation and motion detection algorithm provide stable performance across varying environmental conditions. The detector offers a wide 90° detection angle and a 15 m x 15 m coverage area, making it suitable for medium-sized rooms. Its low power consumption (12 mA standby) and NC alarm output ensure compatibility with most alarm panels.

Suitable for

• Indoor security systems in homes, offices, and retail spaces
• Integration with SATEL and third-party alarm control panels
• Areas requiring pet-immune detection (no pet immunity in this model)

Key specifications

• Detection technology: Passive Infrared (PIR)
• Detection area: 15 m x 15 m (90° angle)
• Power supply: 12 V DC (±15%)
• Standby current: 12 mA, max current: 15 mA
• Alarm output: NC, 40 mA / 24 V DC
• Tamper output: NC, 40 mA / 24 V DC
• Operating temperature: -10°C to +55°C
• Environmental class: II (EN50130-5)
• IP rating: IP20
• Recommended installation height: 2.4 m
• Compliance: EN 50131-2-2 Grade 2
• Color: Graphite
• Housing material: ABS plastic

Recommendations

Install at the recommended height of 2.4 m for optimal coverage. Avoid placing near heat sources or direct sunlight. This detector is not pet immune; consider alternative models if pets are present.
