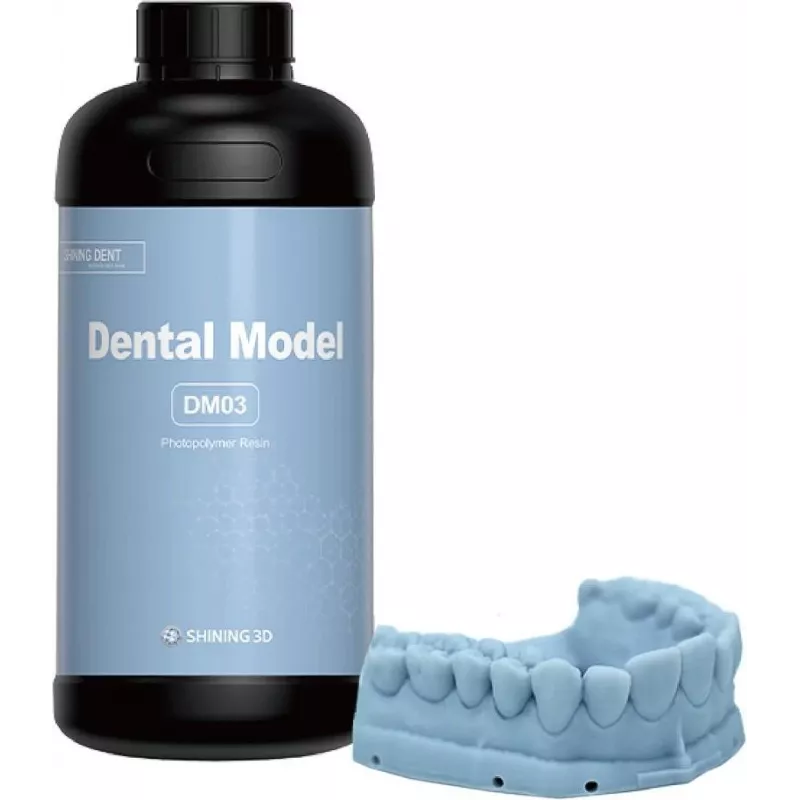

Shining 3D DENTAL MODEL DM03 1kg (DM03)

The Shining 3D DENTAL MODEL DM03 is a high-performance UV-curable resin specifically formulated for dental model applications. This 1kg bottle delivers exceptional precision, surface finish, and dimensional stability, making it the ideal choice for orthodontic, aligner, and study models. Optimized for DLP/LCD 3D printers, especially the Shining 3D AccuFab series, DM03 ensures reliable results with low shrinkage and high hardness.

Advantages

DM03 offers a unique combination of high precision, excellent surface finish, and low shrinkage, ensuring accurate and durable dental models. Its high hardness (80-85 Shore D) and tensile strength (50-60 MPa) provide robust models that withstand handling and articulation. The resin's low viscosity (200-300 mPa·s) ensures smooth printing and easy cleanup, while the volumetric shrinkage of less than 1% guarantees dimensional accuracy.

Suitable for

• Dental Models
• Orthodontic Models
• Aligner Models
• Study Models

Key specifications

• Resin Type: UV Curable Dental Model Resin
• Color: Beige
• Net Weight: 1 kg
• Curing Wavelength: 405 nm
• Printer Compatibility: DLP/LCD 3D Printers (Optimized for Shining 3D AccuFab series)
• Hardness (Shore D): 80-85
• Tensile Strength: 50-60 MPa
• Flexural Strength: 80-90 MPa
• Elongation at Break: 5-10%
• Density: 1.1 g/cm³
• Viscosity: 200-300 mPa·s (at 25°C)
• Volumetric Shrinkage: < 1%
• Storage Temperature: 15-35°C
• Shelf Life: 12-18 months

Recommendations

For best results, store the resin in a cool, dark place between 15-35°C and use within 12-18 months of purchase. Ensure your 3D printer is calibrated and the resin is thoroughly mixed before use. Post-processing with a 405 nm curing unit is recommended for optimal mechanical properties.
