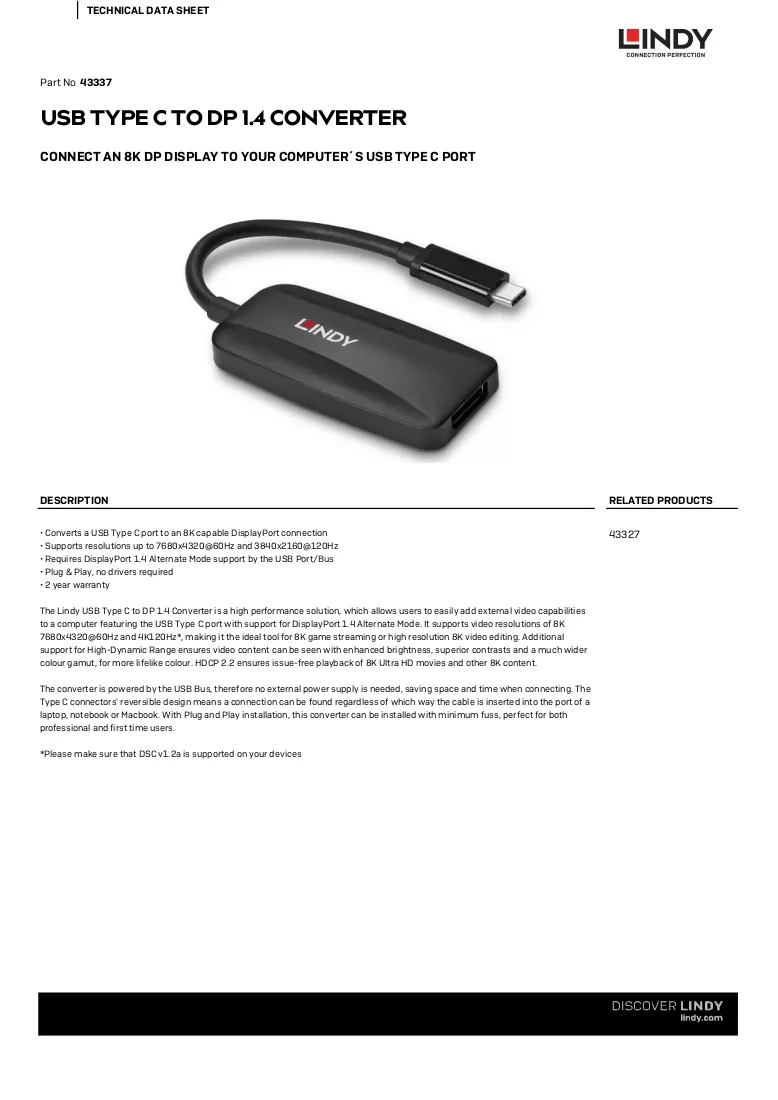

USB Type-C-DisplayPort konverter Lindy 43337

The Lindy USB Type C to DP 1.4 Converter provides a high-performance way to add external DisplayPort video output to computers with a USB Type-C port that supports DisplayPort 1.4 Alternate Mode. It supports resolutions up to 8K (7680x4320@60Hz) and 4K at 120Hz, includes HDR support for improved brightness, contrast and wider colour gamut, and supports HDCP 2.2 for protected 8K Ultra HD content. The converter is bus-powered and does not require an external power supply, and the reversible USB Type-C connector simplifies connection to laptops and MacBooks.

Advantages

The adapter delivers 8K@60Hz and 4K@120Hz video output where the host device supports DisplayPort 1.4 Alternate Mode and optionally DSC v1.2a. HDR compatibility enhances picture quality for compatible displays, while HDCP 2.2 ensures playback of protected content. Bus-powered operation removes the need for external power, and the reversible Type-C connector and Plug and Play installation make set-up quick and straightforward.

Key specifications

• Interface: USB Type-C (with DisplayPort 1.4 Alternate Mode)
• Output: DisplayPort 1.4
• Maximum resolution: 8K 7680x4320 @ 60Hz
• Also supports: 4K @ 120Hz
• HDR support: Yes
• HDCP: 2.2
• Power: USB bus-powered (no external PSU required)
• Compatibility note: Host device must support DisplayPort 1.4 Alt Mode; DSC v1.2a required for some modes

How to use

Connect the Lindy USB Type C to DP 1.4 Converter to a computer's USB Type-C port that supports DisplayPort 1.4 Alternate Mode. Plug a DisplayPort cable from the converter to the monitor or display. The adapter is bus-powered and ready to use without an external power supply. Ensure the host device and display support the desired resolution and, where required, Display Stream Compression (DSC) v1.2a to achieve 8K@60Hz or 4K@120Hz. The connection is Plug and Play; adjust display settings in the operating system if necessary.

Recommendations

Verify that your laptop or host device supports DisplayPort 1.4 Alternate Mode and DSC v1.2a for full 8K/4K120 performance. Use a high-quality DisplayPort cable and a compatible monitor that supports HDR and HDCP 2.2 to ensure correct playback of protected 8K content.
